Forward and Backward Propagation

Table of contents

1. Introduction
2. Forward Propagation Implementation
3. Backward Propagation Implementation
4. Complete Example: 3-Layer Neural Network
5. Summary: Forward and Backward Functions
6. Practical Advice
7. Key Takeaways

---

Introduction

You’ve learned about the building blocks of deep neural networks - forward and backward propagation for each layer. Now let’s see the complete implementation details with all the equations you need.

This lesson provides:

• Complete forward propagation equations (single example + vectorized)
• Complete backward propagation equations (single example + vectorized)
• How to initialize the forward and backward passes
• A concrete 3-layer network example

Forward Propagation Implementation

Single Layer Forward Function

Recall from the previous lesson, the forward function:

Input: $a^{[l-1]}$ (activations from previous layer)

Output: $a^{[l]}$ (activations for this layer), cache

Cache: $z^{[l]}, W^{[l]}, b^{[l]}, a^{[l-1]}$ (needed for backprop)

Forward Propagation Equations

Single Example

For a single training example:

\[z^{[l]} = W^{[l]} a^{[l-1]} + b^{[l]}\] \[a^{[l]} = g^{[l]}(z^{[l]})\]

Where $g^{[l]}$ is the activation function for layer $l$.

Vectorized Implementation

For all $m$ training examples:

\[Z^{[l]} = W^{[l]} A^{[l-1]} + b^{[l]}\] \[A^{[l]} = g^{[l]}(Z^{[l]})\]

Note: $b^{[l]}$ uses Python broadcasting to add to each column of $W^{[l]} A^{[l-1]}$.

Forward Propagation Algorithm

def forward_propagation_layer_l(A_prev, W, b, activation):
    """
    Implement forward propagation for layer l

    Args:
        A_prev: activations from previous layer, shape (n[l-1], m)
        W: weight matrix, shape (n[l], n[l-1])
        b: bias vector, shape (n[l], 1)
        activation: "relu" or "sigmoid"

    Returns:
        A: activations for this layer, shape (n[l], m)
        cache: tuple containing (Z, A_prev, W, b)
    """
    # Linear step
    Z = np.dot(W, A_prev) + b

    # Activation step
    if activation == "relu":
        A = relu(Z)
    elif activation == "sigmoid":
        A = sigmoid(Z)

    # Cache for backpropagation
    cache = (Z, A_prev, W, b)

    return A, cache

Initializing Forward Propagation

Starting point: $a^{[0]} = X$

• For a single example: $a^{[0]} = x$ (input features)
• For vectorized: $A^{[0]} = X$ (entire training set)

Chain of computations:

X = A^[0] → [Layer 1] → A^[1] → [Layer 2] → A^[2] → ... → A^[L] = Ŷ

This left-to-right chain computes predictions by repeatedly applying the forward function.

Backward Propagation Implementation

Single Layer Backward Function

Input: $dA^{[l]}$ (gradient of cost w.r.t. activations)

Output: $dA^{[l-1]}$ (gradient to pass back), $dW^{[l]}$, $db^{[l]}$ (gradients for this layer’s parameters)

Backward Propagation Equations

The Four Key Equations (Single Example)

These four equations implement backpropagation for layer $l$:

Equation 1: Gradient through activation function

\[dZ^{[l]} = dA^{[l]} \odot g'^{[l]}(Z^{[l]})\]

Equation 2: Gradient w.r.t. weights

\[dW^{[l]} = dZ^{[l]} \cdot (a^{[l-1]})^T\]

Equation 3: Gradient w.r.t. bias

\[db^{[l]} = dZ^{[l]}\]

Equation 4: Gradient w.r.t. previous activations

\[dA^{[l-1]} = (W^{[l]})^T \cdot dZ^{[l]}\]

Note: $\odot$ denotes element-wise multiplication

Connection to Previous Formula

If you substitute Equation 4 into Equation 1 for layer $l-1$, you get:

\[dZ^{[l]} = (W^{[l+1]})^T dZ^{[l+1]} \odot g'^{[l]}(Z^{[l]})\]

This matches the backpropagation equations from Week 3!

Vectorized Implementation

For all $m$ training examples:

Equation 1: Activation gradient

\[dZ^{[l]} = dA^{[l]} \odot g'^{[l]}(Z^{[l]})\]

Equation 2: Weight gradient

\[dW^{[l]} = \frac{1}{m} dZ^{[l]} (A^{[l-1]})^T\]

Equation 3: Bias gradient

\[db^{[l]} = \frac{1}{m} \sum_{i=1}^{m} dZ^{[l]}\]

(sum over training examples, keeping dimensions)

Equation 4: Previous activation gradient

\[dA^{[l-1]} = (W^{[l]})^T dZ^{[l]}\]

Backward Propagation Algorithm

def backward_propagation_layer_l(dA, cache, activation):
    """
    Implement backward propagation for layer l

    Args:
        dA: gradient of cost w.r.t. activations, shape (n[l], m)
        cache: tuple (Z, A_prev, W, b) from forward prop
        activation: "relu" or "sigmoid"

    Returns:
        dA_prev: gradient w.r.t. previous activations, shape (n[l-1], m)
        dW: gradient w.r.t. weights, shape (n[l], n[l-1])
        db: gradient w.r.t. bias, shape (n[l], 1)
    """
    # Unpack cache
    Z, A_prev, W, b = cache
    m = A_prev.shape[1]

    # Equation 1: Activation gradient
    if activation == "relu":
        dZ = dA * relu_derivative(Z)
    elif activation == "sigmoid":
        dZ = dA * sigmoid_derivative(Z)

    # Equation 2: Weight gradient
    dW = (1/m) * np.dot(dZ, A_prev.T)

    # Equation 3: Bias gradient
    db = (1/m) * np.sum(dZ, axis=1, keepdims=True)

    # Equation 4: Previous activation gradient
    dA_prev = np.dot(W.T, dZ)

    return dA_prev, dW, db

NumPy implementation detail:

db = (1/m) * np.sum(dZ, axis=1, keepdims=True)

• axis=1: Sum across training examples (columns)
• keepdims=True: Keep result as $(n^{[l]}, 1)$ instead of $(n^{[l]},)$

Initializing Backward Propagation

Starting point: $dA^{[L]}$ (gradient of loss w.r.t. final predictions)

For binary classification with logistic loss:

\[\frac{\partial \mathcal{L}}{\partial a^{[L]}} = -\frac{y}{a^{[L]}} + \frac{1-y}{1-a^{[L]}}\]

Single Example

\[dA^{[L]} = -\frac{y}{a^{[L]}} + \frac{1-y}{1-a^{[L]}}\]

Vectorized (All Examples)

\[dA^{[L]} = \begin{bmatrix} -\frac{y^{(1)}}{a^{[L](1)}} + \frac{1-y^{(1)}}{1-a^{[L](1)}} & \cdots & -\frac{y^{(m)}}{a^{[L](m)}} + \frac{1-y^{(m)}}{1-a^{[L](m)}} \end{bmatrix}\]

Or more concisely in Python:

dAL = - (np.divide(Y, AL) - np.divide(1 - Y, 1 - AL))

Chain of computations:

dA^[L] ← [Layer L] ← dA^[L-1] ← [Layer L-1] ← ... ← dA^[1] ← [Layer 1] ← dA^[0]
   ↓                    ↓                              ↓                  ↓
dW^[L], db^[L]      dW^[L-1], db^[L-1]           dW^[1], db^[1]    (not used)

This right-to-left chain computes all gradients by repeatedly applying the backward function.

Complete Example: 3-Layer Neural Network

Let’s see how forward and backward propagation work together in a complete network.

Network Architecture

Input X (features)
   ↓
Layer 1 (ReLU)
   ↓
Layer 2 (ReLU)
   ↓
Layer 3 (Sigmoid) → binary classification
   ↓
Output Ŷ (predictions)

Forward Propagation (Left to Right)

Layer 1:

\[Z^{[1]} = W^{[1]} X + b^{[1]}\] \[A^{[1]} = \text{ReLU}(Z^{[1]})\]

Cache: $(Z^{[1]}, X, W^{[1]}, b^{[1]})$

Layer 2:

\[Z^{[2]} = W^{[2]} A^{[1]} + b^{[2]}\] \[A^{[2]} = \text{ReLU}(Z^{[2]})\]

Cache: $(Z^{[2]}, A^{[1]}, W^{[2]}, b^{[2]})$

Layer 3:

\[Z^{[3]} = W^{[3]} A^{[2]} + b^{[3]}\] \[A^{[3]} = \sigma(Z^{[3]}) = \hat{Y}\]

Cache: $(Z^{[3]}, A^{[2]}, W^{[3]}, b^{[3]})$

Compute Loss:

\[\mathcal{L} = -\frac{1}{m} \sum_{i=1}^{m} [y^{(i)} \log(\hat{y}^{(i)}) + (1-y^{(i)}) \log(1-\hat{y}^{(i)})]\]

Backward Propagation (Right to Left)

Initialize:

\[dA^{[3]} = -\frac{Y}{A^{[3]}} + \frac{1-Y}{1-A^{[3]}}\]

Layer 3 Backward:

dA3, cache3 = # from forward prop
dA2, dW3, db3 = backward_propagation_layer_l(dA3, cache3, "sigmoid")

Computes: $dW^{[3]}, db^{[3]}, dA^{[2]}$

Layer 2 Backward:

dA1, dW2, db2 = backward_propagation_layer_l(dA2, cache2, "relu")

Computes: $dW^{[2]}, db^{[2]}, dA^{[1]}$

Layer 1 Backward:

dA0, dW1, db1 = backward_propagation_layer_l(dA1, cache1, "relu")

Computes: $dW^{[1]}, db^{[1]}, dA^{[0]}$

Note: We don’t use $dA^{[0]}$ (gradient w.r.t. input features) for training, so we can discard it.

Complete Training Iteration

# Forward propagation
A1, cache1 = forward_propagation_layer_l(X, W1, b1, "relu")
A2, cache2 = forward_propagation_layer_l(A1, W2, b2, "relu")
A3, cache3 = forward_propagation_layer_l(A2, W3, b3, "sigmoid")

# Compute loss
cost = compute_cost(A3, Y)

# Initialize backward propagation
dA3 = - (np.divide(Y, A3) - np.divide(1 - Y, 1 - A3))

# Backward propagation
dA2, dW3, db3 = backward_propagation_layer_l(dA3, cache3, "sigmoid")
dA1, dW2, db2 = backward_propagation_layer_l(dA2, cache2, "relu")
dA0, dW1, db1 = backward_propagation_layer_l(dA1, cache1, "relu")

# Update parameters
W3 = W3 - alpha * dW3
b3 = b3 - alpha * db3
W2 = W2 - alpha * dW2
b2 = b2 - alpha * db2
W1 = W1 - alpha * dW1
b1 = b1 - alpha * db1

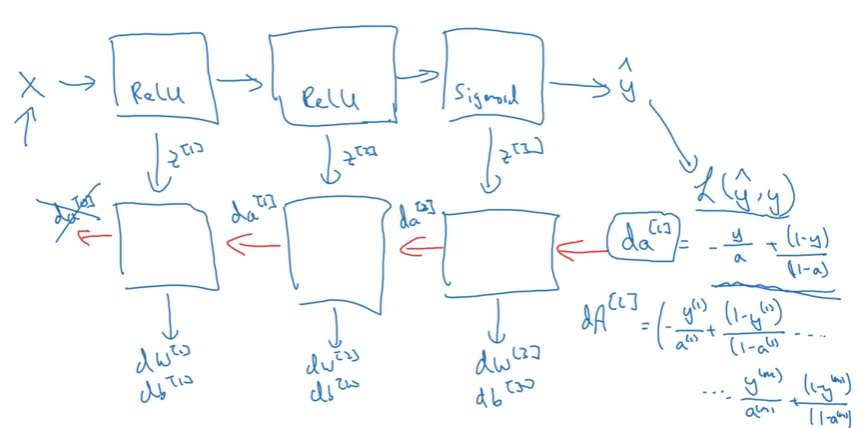

Visual Flow Diagram

FORWARD PROPAGATION:
X ──→ [Layer 1: ReLU] ──→ [Layer 2: ReLU] ──→ [Layer 3: Sigmoid] ──→ Ŷ ──→ Loss
      ↓ cache Z^[1]       ↓ cache Z^[2]       ↓ cache Z^[3]

BACKWARD PROPAGATION:
      dW^[1], db^[1] ←── dW^[2], db^[2] ←── dW^[3], db^[3] ←── dA^[3]
      ↑ use cache         ↑ use cache         ↑ use cache

Summary: Forward and Backward Functions

Forward Function Summary

Component	Equation	Purpose
Linear	$Z^{[l]} = W^{[l]} A^{[l-1]} + b^{[l]}$	Compute pre-activation
Activation	$A^{[l]} = g^{[l]}(Z^{[l]})$	Apply activation function
Cache	Store $(Z^{[l]}, A^{[l-1]}, W^{[l]}, b^{[l]})$	Save for backprop

Backward Function Summary

Component	Equation	Purpose
Activation Gradient	$dZ^{[l]} = dA^{[l]} \odot g’^{[l]}(Z^{[l]})$	Gradient through activation
Weight Gradient	$dW^{[l]} = \frac{1}{m} dZ^{[l]} (A^{[l-1]})^T$	Parameter update for $W^{[l]}$
Bias Gradient	$db^{[l]} = \frac{1}{m} \sum dZ^{[l]}$	Parameter update for $b^{[l]}$
Previous Gradient	$dA^{[l-1]} = (W^{[l]})^T dZ^{[l]}$	Pass gradient back

Practical Advice

Don’t Worry If It Seems Complex!

Important: If these equations feel abstract or confusing, that’s completely normal!

Why it will become clearer:

1. Programming exercise: Implementing these equations yourself makes them concrete
2. Working code: Seeing the equations actually work is enlightening
3. Practice: The more you implement, the more intuitive it becomes

The “Magic” of Deep Learning

Even experienced practitioners are sometimes surprised when deep learning works! Here’s why:

Complexity comes from data, not code:

• Deep learning code is often just 100-500 lines
• Not 10,000 or 100,000 lines of complex logic
• The data does most of the heavy lifting

The equations are calculus:

• Forward prop: Chain function compositions
• Backward prop: Chain rule for derivatives
• The derivation is one of the harder ones in machine learning

It’s okay to not derive everything:

• Focus on implementing correctly
• Understand conceptually what each step does
• Trust the math (it’s been thoroughly verified)

Key Takeaways

1. Forward propagation: $Z^{[l]} = W^{[l]} A^{[l-1]} + b^{[l]}$, then $A^{[l]} = g^{[l]}(Z^{[l]})$
2. Vectorized forward prop: Same equations work for all $m$ examples simultaneously
3. Initialize forward prop: Start with $A^{[0]} = X$ (input data)
4. Four backward equations: $dZ^{[l]}, dW^{[l]}, db^{[l]}, dA^{[l-1]}$ (in that order)
5. Vectorized backward prop: Add $\frac{1}{m}$ factor for $dW^{[l]}$ and $db^{[l]}$
6. Initialize backward prop: Start with $dA^{[L]} = -\frac{Y}{A^{[L]}} + \frac{1-Y}{1-A^{[L]}}$
7. Cache is essential: Store $Z^{[l]}, A^{[l-1]}, W^{[l]}, b^{[l]}$ during forward prop
8. Element-wise multiplication: $\odot$ in $dZ^{[l]} = dA^{[l]} \odot g’^{[l]}(Z^{[l]})$
9. Gradient flow: Forward goes left-to-right, backward goes right-to-left
10. Don’t need $dA^{[0]}$: Gradient w.r.t. input features is not used for training
11. Complete iteration: Forward → Loss → Backward → Update
12. NumPy details: Use keepdims=True for np.sum to maintain dimensions
13. Activation functions: ReLU for hidden layers, sigmoid for binary classification output
14. The math works: These are standard calculus equations (chain rule + matrix derivatives)
15. Practice makes perfect: Implementing in code makes abstract equations concrete!
