Introduction
In the previous week, we learned about logistic regression and how to vectorize it for efficiency. Now we’ll extend these concepts to build neural networks with hidden layers.
Goal: Understand the basic structure and components of a neural network.
From Logistic Regression to Neural Networks
Logistic Regression Review
Recall logistic regression:
\(z = w^T x + b\) \(a = \sigma(z)\)
Components:
- Input: $x$
- Parameters: $w$, $b$
- Linear combination: $z$
- Activation: $a = \sigma(z)$
- Output: $\hat{y} = a$
What is a Neural Network?
A neural network is essentially stacking multiple logistic regression units together.
Key idea: Instead of going directly from input to output, we add hidden layers that learn intermediate representations.
Neural Network Structure

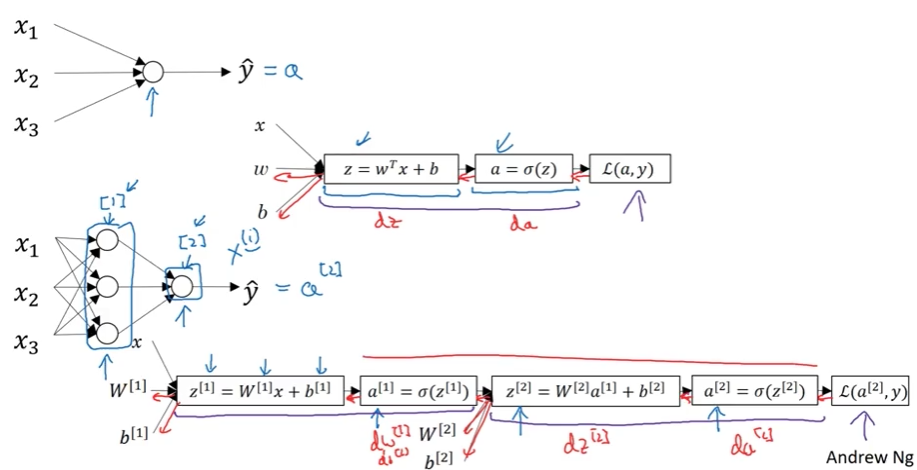

![Neural network architecture diagram showing three representations: top shows a simple single-layer network with three inputs x1, x2, x3 connecting to output ŷ equals a; middle shows a two-layer network with three input nodes x1, x2, x3 connecting to hidden layer nodes marked with superscript [1], which connect to output ŷ equals a superscript [1]; bottom shows detailed computational flow with layers labeled, displaying forward propagation equations z[1] = W[1]x + b[1], a[1] = σ(z[1]), z[2] = W[2]a[1] + b[2], a[2] = σ(z[2]), and backward propagation with red arrows indicating derivatives dz, da flowing from loss function L(a,y) back through the network. Annotations in blue indicate parameters W[1], b[1], W[2], b[2] at each layer. Credit line shows Andrew Ng name at bottom right. The diagram illustrates progressive complexity from single neuron to multi-layer network architecture.](/assets/images/deep-learning/neural-networks/week-3/neural_network_architecture_diagram.png)
Single Hidden Layer Network
A neural network with one hidden layer has three layers:
- Input Layer: Contains the input features
- Hidden Layer: Intermediate layer that learns representations
- Output Layer: Produces the final prediction
Example Architecture
Input Layer (Layer 0):
- Features: $x_1, x_2, x_3$
Hidden Layer (Layer 1):
- Nodes: $a^{[1]}_1, a^{[1]}_2, a^{[1]}_3, a^{[1]}_4$
Output Layer (Layer 2):
- Node: $a^{[2]} = \hat{y}$
Notation Convention
Superscript $[l]$: Indicates layer number
- $a^{[1]}$ = activations in layer 1 (hidden layer)
- $a^{[2]}$ = activations in layer 2 (output layer)
- $W^{[1]}$, $b^{[1]}$ = parameters for layer 1
- $W^{[2]}$, $b^{[2]}$ = parameters for layer 2
Superscript $(i)$: Indicates training example number
- $x^{(i)}$ = $i$-th training example
Subscript: Indicates node/unit number
- $a^{[1]}_1$ = first node in layer 1
- $a^{[1]}_2$ = second node in layer 1
How Each Node Works
Each node in a neural network performs two steps:
Step 1: Linear Combination
\[z = w^T x + b\]Step 2: Activation Function
\[a = \sigma(z)\]For hidden layer node $j$:
\(z^{[1]}_j = w^{[1]T}_j x + b^{[1]}_j\) \(a^{[1]}_j = \sigma(z^{[1]}_j)\)
Why Hidden Layers?
Problem with logistic regression: Can only learn linear decision boundaries.
Solution with hidden layers:
- Each hidden layer learns more complex features
- Combines input features in non-linear ways
- Enables learning of complex patterns
Example:
- Input: Raw pixel values
- Hidden layer: Learns edges, simple shapes
- Output: Classifies the image
Neural Network Computation
Forward Propagation
Computing hidden layer:
For each node $j$ in hidden layer:
\(z^{[1]}_j = w^{[1]T}_j x + b^{[1]}_j\) \(a^{[1]}_j = \sigma(z^{[1]}_j)\)
Computing output:
\(z^{[2]} = w^{[2]T} a^{[1]} + b^{[2]}\) \(a^{[2]} = \sigma(z^{[2]}) = \hat{y}\)
Vectorized Computation
Instead of computing each node separately, we can vectorize:
Hidden layer (all nodes at once):
\(Z^{[1]} = W^{[1]} X + b^{[1]}\) \(A^{[1]} = \sigma(Z^{[1]})\)
Output layer:
\(Z^{[2]} = W^{[2]} A^{[1]} + b^{[2]}\) \(A^{[2]} = \sigma(Z^{[2]})\)
Matrix Dimensions
Understanding dimensions is crucial for implementation.
For One Training Example
Input: $x \in \mathbb{R}^{n_x}$ (column vector)
Hidden layer:
- $W^{[1]} \in \mathbb{R}^{n^{[1]} \times n_x}$ where $n^{[1]}$ = number of hidden units
- $b^{[1]} \in \mathbb{R}^{n^{[1]}}$
- $Z^{[1]} \in \mathbb{R}^{n^{[1]}}$
- $A^{[1]} \in \mathbb{R}^{n^{[1]}}$
Output layer:
- $W^{[2]} \in \mathbb{R}^{1 \times n^{[1]}}$ (for binary classification)
- $b^{[2]} \in \mathbb{R}$
- $Z^{[2]} \in \mathbb{R}$
- $A^{[2]} \in \mathbb{R}$
For $m$ Training Examples
We stack examples horizontally (as columns):
Input: $X \in \mathbb{R}^{n_x \times m}$
Hidden layer:
- $Z^{[1]} \in \mathbb{R}^{n^{[1]} \times m}$
- $A^{[1]} \in \mathbb{R}^{n^{[1]} \times m}$
Output layer:
- $Z^{[2]} \in \mathbb{R}^{1 \times m}$
- $A^{[2]} \in \mathbb{R}^{1 \times m}$
Comparison: Logistic Regression vs Neural Network
| Aspect | Logistic Regression | Neural Network |
|---|---|---|
| Layers | 2 (input, output) | 3+ (input, hidden(s), output) |
| Parameters | $w$, $b$ | $W^{[1]}$, $b^{[1]}$, $W^{[2]}$, $b^{[2]}$, … |
| Complexity | Linear decision boundary | Non-linear decision boundaries |
| Representations | Uses raw features | Learns feature representations |
| Computation | Single step | Multiple steps (layers) |
Key Takeaways
- Neural networks stack multiple logistic regression-like units
- Hidden layers learn intermediate representations
- Notation: Use $[l]$ for layer number, $(i)$ for example number
- Each node: Computes $z = w^T x + b$, then $a = \sigma(z)$
- Forward propagation: Compute activations layer by layer
- Vectorization: Process all examples and nodes simultaneously
- More layers: Enable learning of more complex patterns
- Matrix dimensions: Critical for correct implementation
Remember: A neural network is just organized logistic regression units that learn hierarchical representations!
